SteriDrain, its innovative family of next generation drains from the DuraTrench line designed for the demanding needs of the food & beverage and phamaceutical industries.
SteriDrain is the first product line on the market to offer a factory attached resinous flooring keyway blockout. The ResinKey profile creates a keyway in concrete for a resinous floor to lock around the drain.
The SteriDrain family of drains incorporates cutting-edge technology and design to enhance sanitation, improve efficiency, and minimize downtime in food processing facilities.
KEY FEATURES INCLUDE
Enhanced Hygiene:
- Sleek, seamless design with minimized crevices to prevent bacteria buildup
- Easy-to-clean surfaces and integrated flushing systems
Improved Performance:
- Increased flow capacity to handle high volumes of wastewater and solids
- Reduced clogging and improved drainage efficiency
- Enhanced durability and resistance to harsh chemicals
Streamlined Maintenance:
- Quick and easy access for cleaning and inspection
- Modular design for simplified installation and repair
- Reduced maintenance costs and downtime
For more information, please contact your local representative to learn more!
SteriDrain – A Family of DuraTrench Next Generation Drains

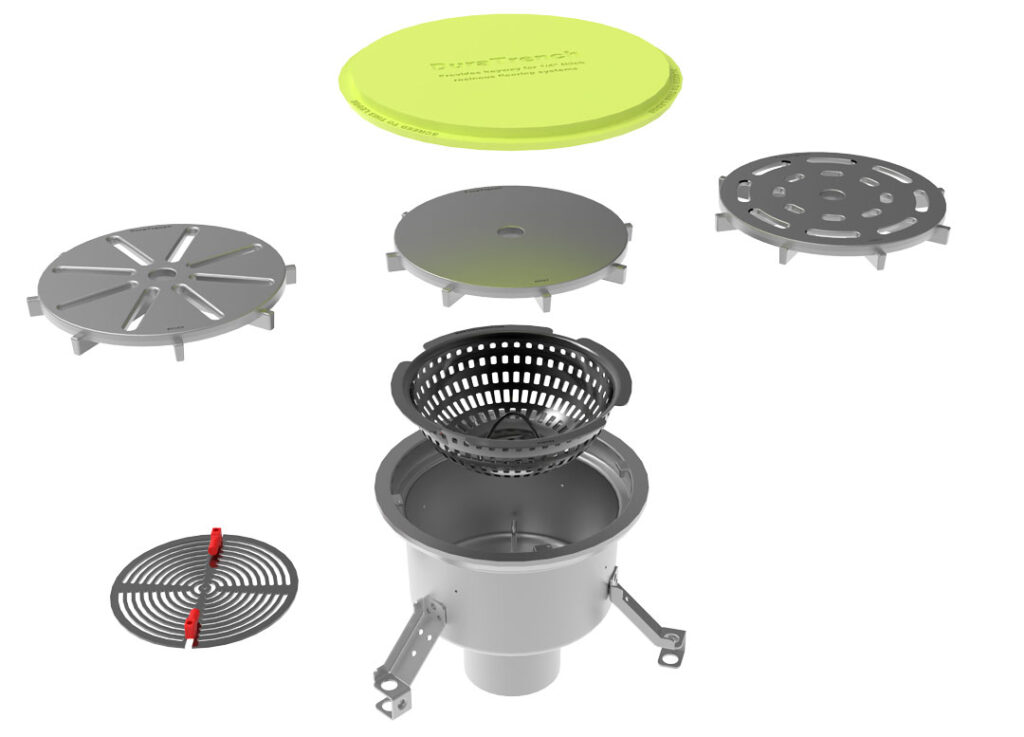

Extra Heavy Duty Stainless Steel Floor Drain
This ASME Extra Heavy Duty load rated floor drain is manufactured from T316 SS and includes rebar installation devices, multiple cast twist lock grate options with tamper proof restraint available, removeable large capacity basket, removeable magnetic lockable outlet strainer, 3″ to 6″ outlet sizes, optional waterproof membrane clamping collar, and cap.

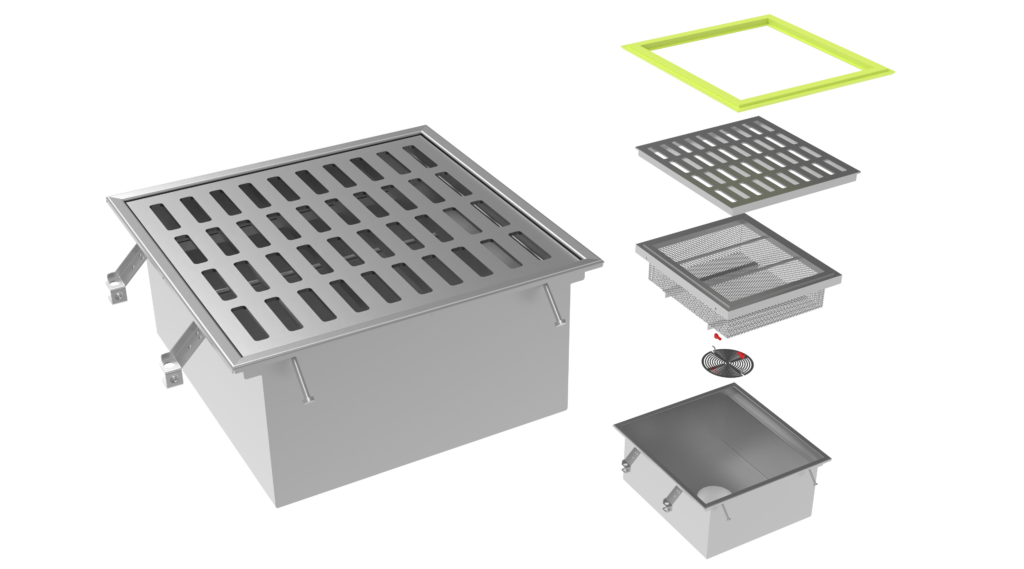

Heavy Duty Stainless Steel Floor Sink
These ASME Medium Duty to Extra Heavy Duty load rated floor sinks manufactured from T304 or T316 SS which includes various sizes & depths, rebar installation devices, multiple grate options, removeable large capacity basket & interlocking frame, optional magnetic locking removeable outlet strainer, 3″ to 6″ outlet pipe sizes, and optional ResinKey cap.
Medium Duty Stainless Steel Floor Drain
This ASME Medium Duty load rated floor drain is manufactured from T316 SS and includes, removeable slotted grate & debris strainer, 2″ & 4″ outlet sizes, large concrete locking collar, and ResinKey cap.
Stainless Steel Trench Drain
These linear drains are manufactured from T304 or T316 SS and typically used in sanitary or chemical processing areas. Designed for load ratings from ASME Light Duty to Extreme Duty based on grate chosen. Multiple grate patterns and materials available. The drains can be produced in a variety of widths and depths from 2 inches to 12ft. Variable slopes based on the application. Channel sections from 8ft to 54ft long and connections can be field welded or gasketed.
Stainless Steel Slotted Drain
These specialty linear drains are manufactured from T304 or T316 SS and typically used in sanitary or chemical processing areas with lower solid to fluid capture ratio. Designed for load ratings from ASME Light Duty to Extreme Duty based on grate chosen. Multiple slot widths available. The drains can be produced in a variety of widths 2inches to 12inches and depths from 4 inches to 5ft. Variable slopes based on the application. Channel sections from 8ft to 54ft long and connections can be field welded or gasketed.
Polymer Trench Drain
These general-purpose linear drains are manufactured from polyester, vinylester , or fire retardant GFRPC and typically used in sanitary or chemical processing areas. Designed for load ratings from ASME Light Duty to Extreme Duty to DIN F based on grate & frame chosen. The drains can be produced in a variety of widths 2inches to 12ft. and depths from 4 inches to 12ft. Variable slopes based on the application. Channel sections from 8ft to 24ft long and connections can be bonded for watertight testing.
Polymer Utility Trench Drain
These trenches are manufactured from polyester, vinylester , or fire retardant GFRPC and typically used in manufacturing areas where feed or process piping, valves and cabling must be accessed. Designed for load ratings from ASME Light Duty to Extreme Duty to DIN F based on cover & frame chosen. These trenches can be produced in a variety of widths 6″ inches to 12ft. and depths from 4 inches to 12ft. Variable slopes if applicable. Channel sections from 8ft to 24ft long and connections can be bonded for watertight testing. Integrated uni-struts can be configured to the customers application.
Extra Heavy Duty Cleanout
This ASME Extra Heavy Duty load rated floor cleanout is manufactured from T316 SS and includes rebar installation devices, cast twist lock gasketed cover, removeable trap seal, 3″ to 6″ outlet sizes, and ResinKey cap.
Flushing Nozzle
Manufactured from SS or plastic these adjustable nozzles are designed to reduce maintenance intervals and improve food safety by releasing water or water/cleaner mixture within the drain. This not only cleans the drain but helps move stubborn solids to a collection point.
Stainless Steel Hub Drain
The Hub Drain is designed to collect fluid from equipment or poured from a container. The T316 SS construction with concrete anchors creates a durable product for industrial applications. Connections from 2″ to 6″ pipe.
High Load Molded Fiberglass Grate
These grates are manufactured from fiberglass and excellent for high flow, chemical resistant applications. Load rating from DIN A to DIN D, with smooth or grit non-slip surface
Stamped Stainless Steel Perforated Grate
The grates are made from 304SS. The stamped manufacturing creates a smooth top finish. The perforated design allows fluids to be filtered from solids, leaving them on the surface to be collected.
Galvanized Bar Grate
These grates are manufactured from galvanized steel and excellent for high flow, applications. Load rating from DIN B to DIN E, smooth or serrated top options available.
Cast Stainless Slotted Grate
Cast in T304 or T316 SS these grates are designed for Extra Heavy Duty loading and have high chemical & temperature resistance. The slot opening allows for excellent capture in processing areas while having high dynamic forklift traffic cross.
Cast Ductile Iron Slotted Grate
These general-purpose cast in ductile iron these grates are designed for Extra Heavy Duty loading. The slot opening allows for excellent capture in processing areas while having high dynamic forklift traffic cross.
Molded Fiberglass Solid Cover
These grates are molded from vinyl-ester resin and reinforced for DIN loading D. The material design makes the grates non-conductive and highly chemical resistant.
