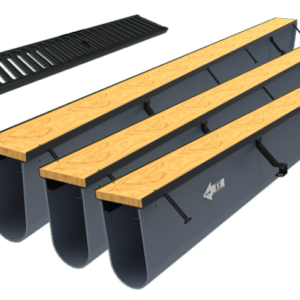

This Complete 16-ft Residential Driveway Drain kit includes everything you need for a 16′ wide driveway or smaller (can be trimmed to fit your driveway). This is a 4-inch wide trench drain (internal width). The driveway drain kit includes:
- Qty 1 – Dura-Trench 4″ wide x 8′ long precast channel (section #7.5) with heavy-duty black powder-coated steel frame (SKU: DTPF4-7.5-HDBP)
- The beginning depth of this channel is 7-inches
- The ending depth of this channel is 7.5-inches
- Plywood tops
- Qty 1 – Dura-Trench 4″ wide x 8′ long precast channel (section #8.0) with heavy-duty black powder-coated steel frame (SKU: DTPF4-8.0-HDBP)
- The beginning depth of this channel is 7.5-inches
- The ending depth of this channel is 8-inches
- Plywood tops
- Attached plywood tops protect the channel during transit, installation, and concrete installation and curing
- Your choice of outlet pipe configuration
- The End-Outlet configuration includes one universal end plate with knock-out holes to accommodate 4-inch and 6-inch outlet pipes. (SKU: UEP4)
- The Bottom and Side-Outlet configurations include one universal end plate and one universal bottom/side outlet connection (SKU: UEP4 and UBO4)
- Your choice of grate

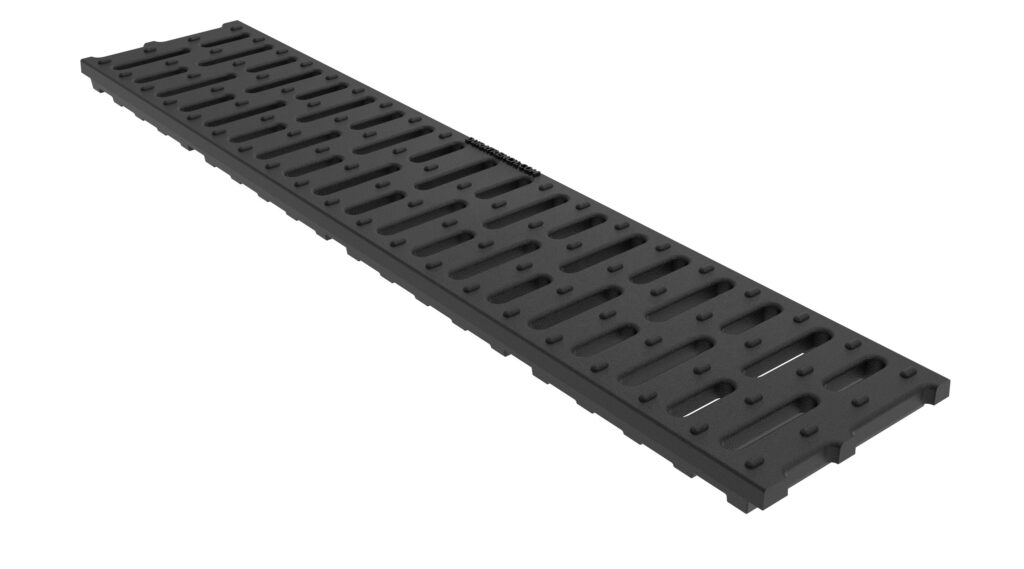

- Qty 8 – Ductile iron slotted grate – E-coated black – 5″ wide x 24″ long x 0.75″ thick (SKU: 05B24DI)

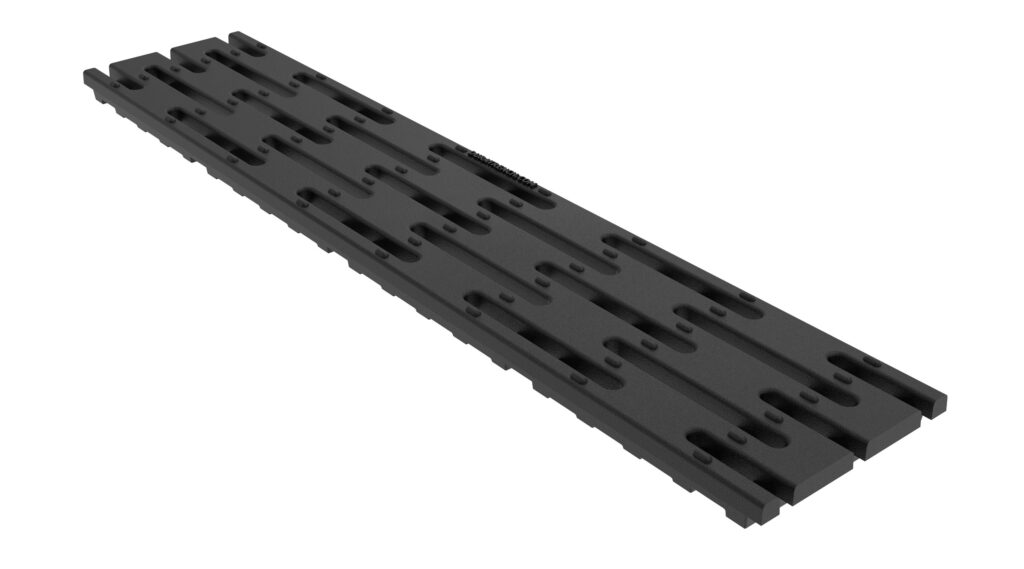

- Qty 8 – ADA compliant and heel-proof ductile iron longitudinally slotted grate – E-coated black- 5″ wide x 24″ long x 0.75″ thick (SKU: 05C24DI)
- Qty 8 – toggle locks secure the grates to the frame (SKU: GLZN4)
These driveway drain kits are not light-duty plastic drains from big box stores or other online stores. This is a super commercial solid grade 16-foot driveway drain. Our trench drain kits for your driveway are pre-sloped. This gives them a faster flow that is less likely to clog. Our driveway drains can move 2 or 3 times more water than traditional non-sloping drains. When you order this driveway drain kit, you will notice the difference. The trench drain body is constructed of a heavy fiber-reinforced polymer that won’t warp or bow in the heat. The frame is engineered to allow a vehicle’s load-bearing weight to be distributed to the surrounding ground and concrete rather than the system itself. This critical design element ensures that the trench drain will outlive your driveway.
This same style of driveway drain is used in industrial settings with forklift traffic. You won’t damage this trench drain. The driveway drain grates we offer are also rated for high-speed vehicular traffic. The same grate styles are purchased by state DOT’s for roadway use.
Each section of the trench drains has temporary plywood covers that protect the channel during transit, installation, and concrete pouring. It’s critical that the plywood not be removed until you are ready to install the grates. These kits are delivered on a freight truck with a lift gate.
Dura Trench has a complete driveway drain kit. It comes with all the necessary components and is easy for the novice to install. These drains come with installation devices to easily level the drains. We have complete instructions that are easy to follow. The outlet plates attach easily. The trench comes with plywood on the top so that you do not get the grates covered in concrete during placement. Just so many features that make this driveway drains better.
This is the answer if you want a quality 16 ft driveway drain. Dura Trench is known for providing high-quality, durable driveway drains. We don’t skimp on quality. Buy our driveway drain if you want to only do this project once in your life. If you enjoy cutting concrete, jackhammering, manual labor, pouring concrete, and spending money fixing things, buy the other guy’s driveway drain.
